The CTX Containex Dealer for North Wales & the North West
Flintshire Crane Hire Limited is the North Wales & North West dealer for CTX Containex units. These units are manufactured in Europe to a high specification and comply with Part L2 of the current Building Regulations. They are also classed as Class ‘0’ under fire regulations.
Changing Rooms: 10 Bay Segregated Units, 1600sqft (484m²)

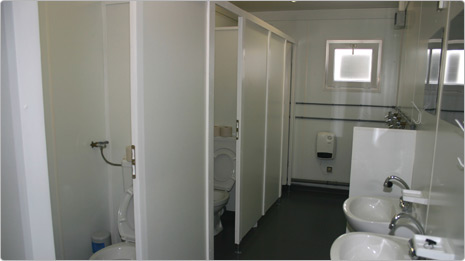

Changing Room Interior

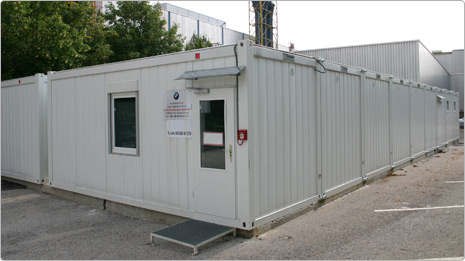

Project Management Offices
2 x 9 Bay Open Plan Units. 72ft (21.8m) x 20ft (6m). 2880sqft – 130.8m² Total Accommodation

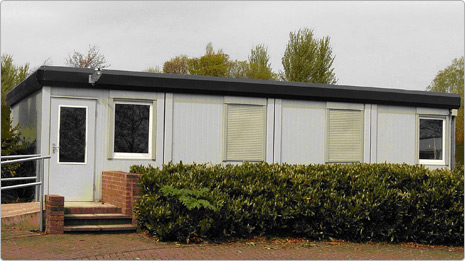

Classroom Accommodation Unit
4 Bay Open Plan Unit. 32ft (9.7m) x 20ft (6m). 640sqft – 58.2m²

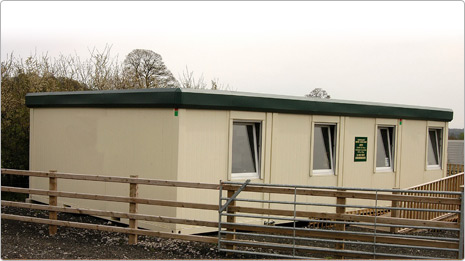

Retail Unit – 4 Bay Open Plan

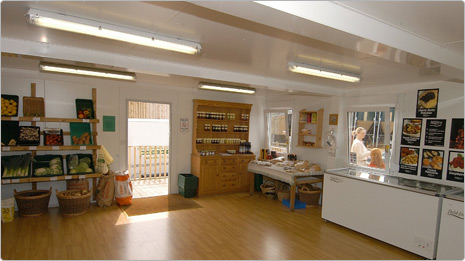

Retail Unit Interior - 640sqft – 58.2m²

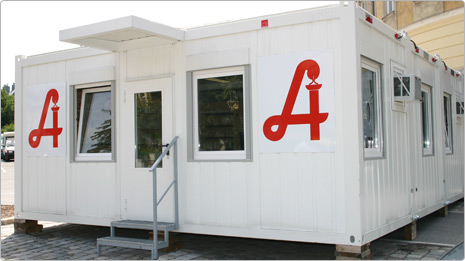

Sales Office Unit
5 Bay Open Plan with Internal Sales Offices. 24ft (7.3m) x 40ft (12m). 960sqft – 88m²

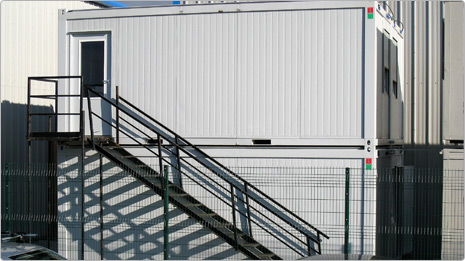

Meeting / Conference Rooms - 2 x 2 Bay Open Plan Units
CTX Containex Unit Specifications & Delivery
The standard units give typical insulation values such as:
| Item | Material Thickness | Insullation performance 'U' |
|---|---|---|
| Floor | 60mm | 0.54W/m² K |
| Roof | 100mm | 0.37W/m² K |
| Walls | 60mm | 0.35W/m² K |
| Windows | 4 / 16 / 4mm | 2.40W/m² K |
| Gas filled windows (Optional) |
4 / 16 / 4mm | 1.10W/m² K |
These insulation values should be considered as a guide, if better insulation values are required then the appropriate improvements can be accommodated.
Units can be provided in a variety of sizes:
| Imperial | Metric |
|---|---|
| 10ft x 8ft | 3m x 2.4m |
| 16ft x 8ft | 4.8m x 2.4m |
| 20ft x 8ft | 6m x 2.4m |
| 24ft x 8ft | 7.2m x 2.4m |
| 30ft x 8ft | 9m x 2.4m |
Units can be joined together in any combination of the above sizes to create open plan accommodation.
